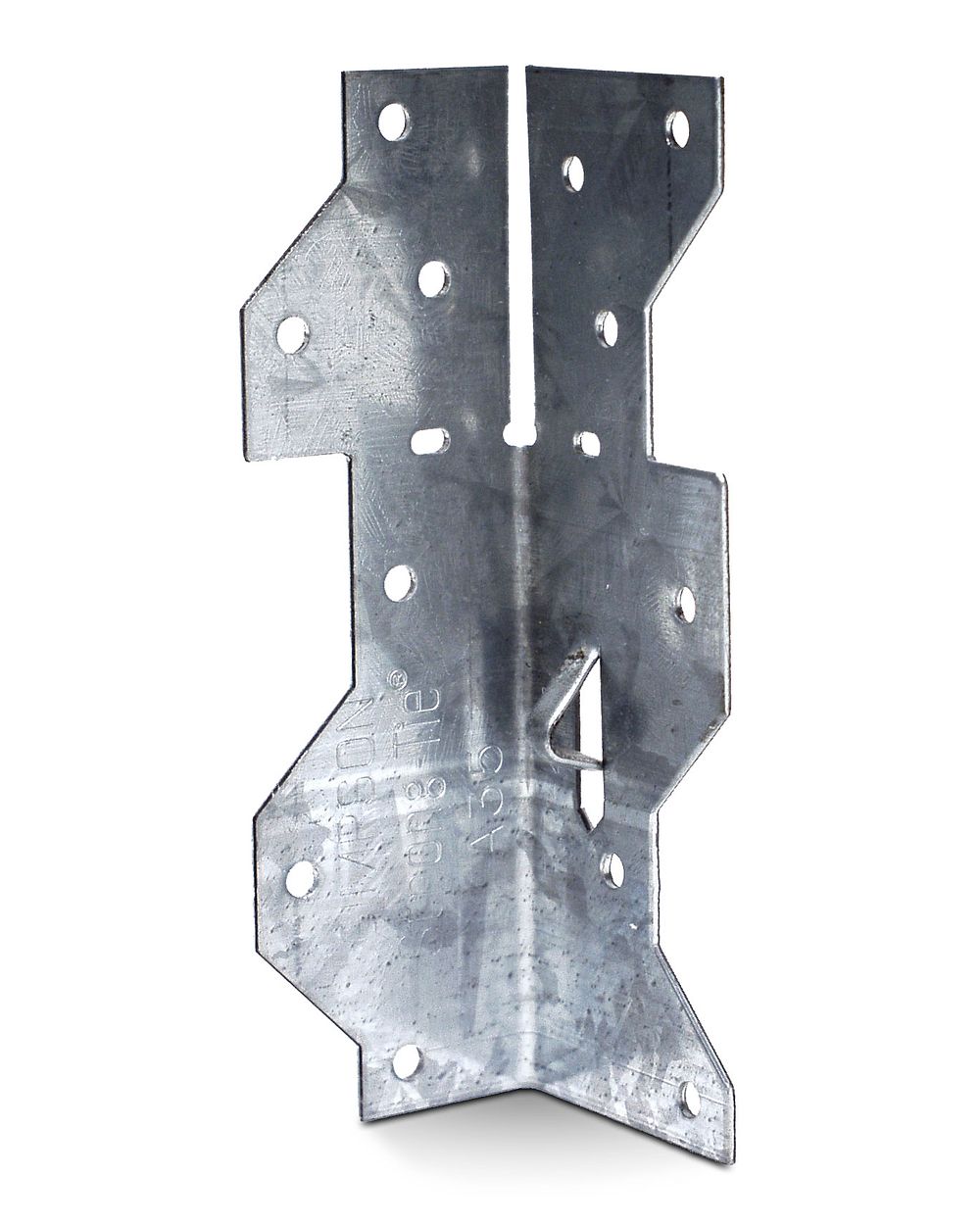

Simpson Strong-Tie A35Z 1-7/16 in. x 4-1/2 in. ZMAX® Galvanized Framing Angle

Name: Simpson Strong-Tie A35Z 1-7/16 in. x 4-1/2 in. ZMAX® Galvanized Framing Angle
Brand: Simpson Strong-Tie
SKU: A35Z
Availability: InStock

SKU: A35Z

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our ZMAX zinc-coated connectors, which provide extra resistance against corrosion (look for a "Z" at the end of the model number).

Available Sizes & Options

SKU	Product	Status
A35Z	Simpson Strong-Tie A35Z 1-7/16 in. x 4-1/2 in. ZMAX® Galvanized Framing Angle Current	Available
IUS1811188	Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist Hanger	Available
HUS18110	Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount Hanger	Available
SUR18111	Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvl	Available
IUS18195	Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount Sing	Available
1212HL	Simpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L Strap	Available
1212HLHDG	Simpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L Strap	Available
1212HLPC	Simpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L Strap	Available
1212HT	Simpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T Strap	Available
1212HTHDG	Simpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1212HTPC	Simpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1212L	Simpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212L-R	Simpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212T	Simpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
1212T-R	Simpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
128T	Simpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
128T-R	Simpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
1616HT	Simpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T Strap	Available
1616HTHDG	Simpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1616HTPC	Simpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1616HTQ	Simpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available

Product Details

Key Features

Load rated for wind and seismic forces
Suitable for both new and retrofit applications

Material

18 gauge

Finish

Galvanized, stainless steel or ZMAX^® coating; see Corrosion Information

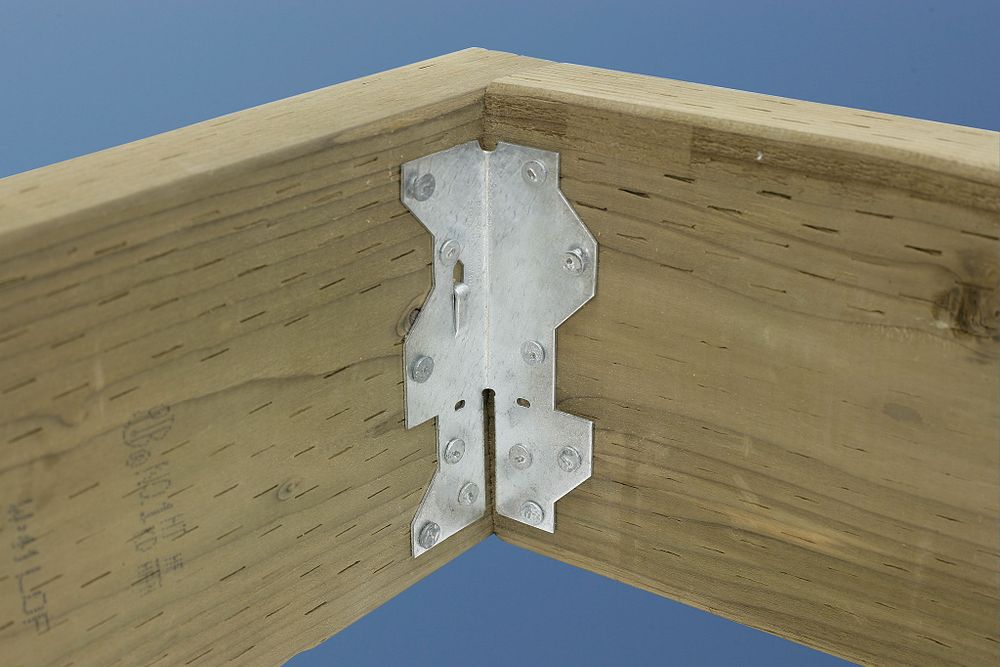

Installation

Installation Guide
Use all specified fasteners; see General Notes
Bend one time only

Catalog Pages

C-C-2026 (Wood Construction Connectors), pages 309–310

Specifications

Model No.	Ga.	W1 (in.)	W2 (in.)	L (in.)	Coating/Material	Packaging Qty.
A35	18	1 7/16	1 7/16	4 1/2	Zinc Galvanized, G90	1

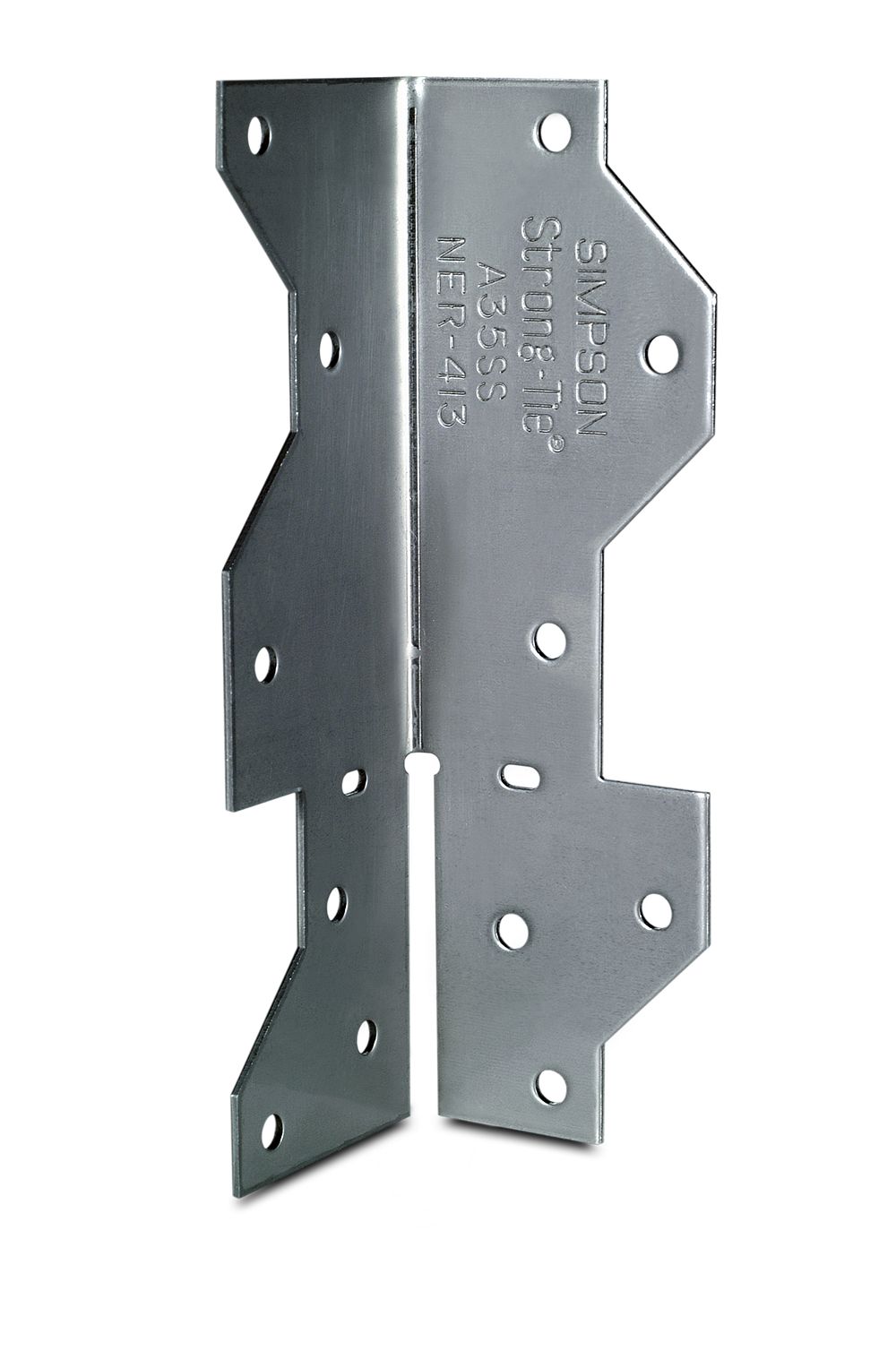

A35SS	18	1 7/16	1 7/16	4 1/2	Stainless Steel	1
A35Z	18	1 7/16	1 7/16	4 1/2	ZMAX®	1

Load Table

Model No.	Type of Connection	Fasteners	Direction of Load	DF/SP Allowable Loads			SPF/HF Allowable Loads
Model No.	Type of Connection	Fasteners	Direction of Load	Floor (100)	Roof (125)	(160)	Floor (100)	Roof (125)	(160)
See Load Table footnotes above for additional information.
A35SS	2	(9) 0.131 x 1 1/2	A₁, E	220	220	220	150	150	150
	2	(9) 0.131 x 1 1/2	C₁	165	165	165	140	140	140
	3	(12) 0.131 x 1 1/2	A₂	300	300	300	260	260	260
			C₂	250	250	250	170	170	170
			D	175	175	175	150	150	150
	4	(12) 0.131 x 1 1/2	F₁	505	505	505	420	420	420
	4	(12) 0.131 x 1 1/2	F₂	545	545	545	505	505	505

Load Table

Model No.	Direction of Load	Fasteners	DF/SP Allowable Loads			SPF/HF Allowable Loads
Model No.	Direction of Load	Fasteners	Floor (100)	Roof (125)	(160)	Floor (100)	Roof (125)	(160)
These products are available with additional corrosion protection. See Load Table footnotes above for additional information.
A35	A₁, E	12-SD9112	260	295	320	225	255	275
	C₁		170	170	170	145	145	145
	A₂		260	295	320	225	255	275
	C₂		260	295	315	225	255	270
	D		150	150	150	130	130	130
	F₁		695	695	695	600	600	600
	F₂		845	845	845	670	725	725
